Encryption

Notes

Notes are encrypted (and decrypted) by own algorithm implemented in Present.js and Present.java. Encryption and decryption (wrap(), unwrap()) works by a logical OR of a single character with a token (indiscernible) and represent the result as a 3 letter block consisting of a the character code with base 25 and filling the rest up randomly with a character of a list of p-z.

1. fool = user
2. indiscernible = (unsichtbar) private token to hash a note
3. camouflage = (Tarnung); hashed string; consists of chunks of 3 chars, the last chars are the XOR of string to hash and key converted to base 25 filled up to 3 with random letters not used in base.
4. haze = (Nebel) actual timestamp
5. bft = (AES) private token to hash bookmark comments (JS: amFrb2J0aGltbzEyMzQ1Ng==, Java on server and client (Crypt.java): jakobthimo123456)
6. notepresent = package of present and camouflaged note
7. present = package of fool, haze, camouflage of haze; used to verify if the notepresent sent was camouflaged correctly and valid, by checking if the unwrapped camouflage is equal to haze

To check if the service callers are authorized, the actual timestamp is send uncrypted (haze) and encrypted (camouflage). On the server it is checked that the decrypted camouflage is equal to haze.

Bookmarks

All bookmarks data (menu name and comment, as well as url name, link and comments) are en- and decrypted by AES (see clientserver.Crypt.java) and also stored as Base64 in DB. To read the data or to test encryption there are two REST services.

For encrypting the communication with client via REST services the samee encryption as for notes is used.

App Cache

• Application Cache API manifest selection is deprecated
• Service Workers
• Cache Storage API / global caches object
• sw-toolbox and sw-precache

Bookmarks

• root node identified by name = 'My Bookmarks' or id = 1

Backup

C:\Uwes\Batches\RaspberryBookmarksToLocalhost.bat

Data Model

• see diagramm Bookmarks Java Classes

Tree Versioning

1. bookmark tree version and random ID (client ID) is stored in the root node of an tree
2. bookmark tree version is set to latest update or create action and stored at the root tree element
3. bookmark random ID (client ID) is set randomly after loading a tree from the DB
4. an update/save of a bookmark tree is only valid if the tree version of the tree to be saved is identical to last update or create action or the random ID (client ID) of the tree to be saved is identical to the last update or create action (the second is needed because multiple saves by one client outdates the tree version on the client)

Tooltip

• implemented by using PowerTip

Online Bookmarks

• see sequence diagram BookmarksApp

Offline Bookmarks

• see sequence diagram CachedBookmarksApp

Menu Implementation

• in BookmarksController.renderCachedBookmarks() items which have a menu are assigned a specific class (cachedUrl, cachedMenu, cachedMenuHeader)
• there is tapholdXXX()-method registered via JQuery selector and on() for taphold-event and this class

Notes

JavaScript application design is based on C:\Uwes\Documents\Software_Development\Programming\Languages\JavaScript\JQuery\How to Build a jQuery Mobile Application v1.1.pdf. See sequence diagram NotesApp.

Note Categories

• add column to note table:

ALTER TABLE `note` ADD `category_id` BIGINT(20) NOT NULL DEFAULT '0' ;

• add table 'notecategory' by importing

\src\notecategory.sql

• categories can be selected for a note in the note editor, the id of the category is saved as attribute of a note
• after creation a new category gets a random negative id which is updated with the server id in the local storage after the successful Ajax save call
• see also Object Diagramm Notes JavaScript Objects

Backup Notes

• notes are copied from the Server to Laptop by SynchronizeHostsTask->backupNotesFromVServer4You() which calls

c:\Uwes\Batches\RaspberryNotesToLocalhost.bat

Saving a note

• see sequence diagram onSaveNoteButtonTapped()

Management

DisAndEnable Application Service

• see /server/rest/ManagementService.java restartApp() method
• executes AppConfiguration.getRestartAppCommand() with is stored and encrypted in <JBOSS_DIR>/standalone/data/uweheuer/Configuration.properties
  • on Laptop:

cmd /c c:\\Uwes\\Batches\\DisAndEnableUweHeuerLaptop.bat

• • on HomePC:

/myprogs/DisAndEnableUweHeuer.bat

Reboot Service

• see /server/rest/ManagementService.java rebootServer() method
• see Runtime Configuration

Sync Services

• see /server/rest/ManagementService.java getSyncStatus() method

Runtime Configuration

• When deployed, the name of the WAR becomes, by default, the root path of the web application
• managed by class AppConfiguration
• some parameters are read from the configuration file Configuration.properties in <JBOSS_DIR>\standalone\data\uweheuer directory, data stored AES encrypted Crypt and decrypted by /clientserver/Crypt.java, encryption of entries can be created by Eclipse project CryptTest
• some parameters are set by string replacement in AppConfiguration.java during ant build before compilation
  • SAFE_MODE // which controls the Present.check(), in case it its true, the method does not perform any check

Libraries

JavaScript

• JQuery Timer Plugin
• JStorage

ToDos

• encrypt menu comments => encrypted everything
• client error messages (e.g. at saving, ...) presentation and OK button
• put a salt into encryption in order empty string not always be the same representation in DB
• Authentification
• JS framework
  • responsiveness
  • drag & drop
  • tree

Documentation

1. s. <PROJECT_DIR>/doc/uweheuer.vsd
   1. Build and Deployment Process -> see sheet 'Generation'
2. s. <PROJECT_DIR>/vpproject/uweheuer.vpp (from eclipse Right Click -> 'Open with' -> 'System Editor')

Page Flow

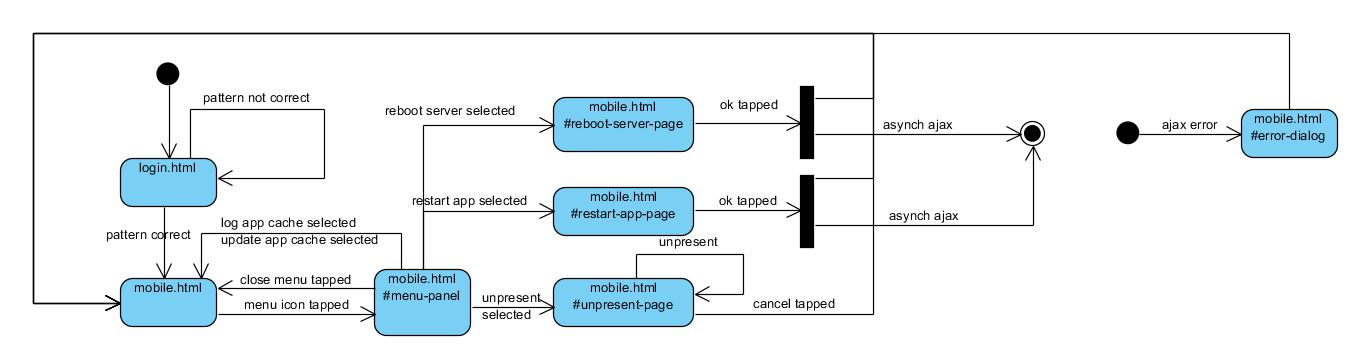

see state diagram Page Flow:

Interfaces

Web Services

Web Services are implemented with Axis. The source files for the classes are in package server.webservices. Callbacks and stubs have been generated long time ago (see automatic comment in generated files) and needed for client implementations. The application acts as a web service client while doing synchronization. WSDL files are generated by target gen_wsdl but are not used. The mechanism used (Axis Servlet) is described here.

Rest Services

Rest services are implemented in package server.rest. The call path to the services is set in class JAXRSActivator.

Bookmarks REST Services

Bookmarks Rest services are implemented in class BookmarkTreeService.

Encryption REST Services

The services are implemented in class server.rest.EncryptionServices.

• to encrypt all bookmarks data (handle carefully, should only be called once)
• to encrypt a string
• to decrypt a string (the + character has to be replaced by %2B)

Installation and Configuration

Create and fill database mysql505 per mysql tools. Copy war-file or directory tree to the webapp directory of the application server. Adjust Apache or Tomcat for proxying to JBoss (see e.g. Apache on HomePC).

Persistence

• Data source configuration see <PROJECT_DIR>\src\WEB-INF\classes\META-INF\persistence.xml
• DB configuration see JBoss configuration, which defines the driver and the database connection string
• EntityManagementUtil creates two EntityManagerFactories, one for bookmarks (definition see persistence.xml) and one for uweswiki (definition see persistence.xml)

Synchronization

• see sequence diagram 'Synchronize Data'
• init configuration in deployment descriptor web.xml

Releases

• Migration from Axis 1 to Axis 2
• Migration from Hibernate to JPA implemented by Hibernate
• Migration from Runtime JBoss 4.2 to JBoss 7.1

Test Cases

• add URL
• add menu
• search url and menu

Generierung and Deployment

Die Generierung erfolgt über Ant (s. build.xml and Documentation -> Build and Deployment Process).

Shell

ant [deploy_raspberry_wildfly|deploy_laptop|deploy_home|deploy_vserverjboss7]

Eclipse

Project -> Build Project ruft das default target 'deploy_laptop_jboss7' auf.

Update Applet

• press x (clear class loader cache) in java console
• press 'Bookmark Applets' in menu

Crypt Data Handling

Die Generierung eines leeren Data-Files namens 'data.crypt' erfolgt über das Kommando:

C:\Uwes\eclipse\workspace\uweheuer\build\class>java server.CreateCryptDataFile.

Die Datei muss in das Verzeichnis <TOMCAT_HOME>/webapps/uweheuer/data kopiert werden z.B. mit

C:\Uwes\eclipse\workspace\uweheuer\build\class>copy data.crypt \Uwes\xampp\tomcat\webapps\uweheuer\data

Contacts

Update Contacts on Local Laptop

• open C:\Uwes\WinScripts\ExportOutlookContactsbyVBA4Excel.xlsm
• open Entwicklertools->Visual Basic and start Makro OutlookContactsToExcelWorksheet2 per Icon in top menu bar or
• Ansicht -> Makros

=> this will create the file C:\Uwes\Programme\Java\JBoss\standalone\data\uweheuer\OutlookContactExportbyVBA4Excel.csv

• call web service http://localhost:8090/uweheuer/services/ContactServices?UpdateContactsFromServerFile

Logging and Debuging

Server Logging

Server-side logging configuration is done via configuration in JBoss. The configuration is (details of Raspberry Wildfly 11 see here):

• Configuration->Core->Logging->Log category 'uweheuer', Log Level 'INFO', handler 'uweheuer_periodic_file_handler'
• Configuration->Core->Logging->Periodic handler 'uweheuer_periodic_file_handler', log level 'INFO', formatter '%d{HH:mm:ss,SSS} %-5p [%c] %C.%M() %s%E%n', ...

The coding uses LogUtil.java an the static method. It creates a logger named uweheuer which is used through out the code and which has the same name as the log category.

Client Logging

Logging on the client side is implemented in MyLog.js, which just has to be included to use it. There are for methods to be uses:

• myLog.info(<message>, <funcname>);
• myLog.warn(<message>, <funcname>);
• myLog.error(<message>, <funcname>);
• myLog.log(<message); // obsolete

Logging always goes to console, in addition also to a special div (var view, setView();) within a window or a seperate window (showLogWindow();). Because the seperate window gets the focus when displaying a message it should be used with the split view of Chrome.

Eclipse Debugging

• debug server by JBoss
• debug applet by Run -> Debug configurations -> Java Applet -> Debug TunnelAppletx
