Uweheuerbackend

Documentation[edit]

https://miro.com/app/board/uXjVPuAgvI0=/
C:\Uwes\owncloud\documents\Software_Development\MyDevelopments\uweheuer.drawio

Architecture and Implementation[edit]

Environment Variables[edit]

Environment variables are used to set application properties of this Spring Boot application:

on a local Windows development laptop they are set as user specific environment variables (see SetLocalEnv.bat).
for running from Ecplise they are set in run configuration

see Documentation 1. sheet 'Backend Environment Variables'

ToDo[edit]

https://docs.amplication.com/tutorials/angular-todos/step-004/

APIs[edit]

Local Dev[edit]

Local Docker[edit]

Backend
Frontend http://localhost:80/
PHPMyAdmin http://localhost:8081/ (see .phpmyadmin.env)

Raspberry Docker via IP[edit]

Frontend http://192.168.178.72/fwdtest/
Backend
- Admin
  - Admin Backend Import http://192.168.178.72:8080/backend/admin/import
  - Admin Backend Version http://192.168.178.72:8080/backend/admin/getBuildTimestamp
  - Update Software http://192.168.178.72:8080/backend/admin/updateSoftware
  - Show Startup http://192.168.178.72:8080/backend/admin/showStartup
- REST
  - http://192.168.178.72:8080/backend/menus/
- Host Interface
  - http://192.168.178.72:8091/rest/update_uweheuer
  - http://192.168.178.72:8091/actuator/health
- Actuator
PHPMyAdmin http://192.168.178.72:8081/
Portainer https://192.168.178.72:9443/ (use in Edge)

Raspberry Docker via uweheuer.spdns.de[edit]

By Windows Powershell[edit]

curl.exe -X POST localhost:8080/menus -H “Content-type:application/json” -d '{ \"name\": \"test by curl\" }'

By Linux Command Shell[edit]

curl https://uweheuer.spdns.de/fwdtest/backend/admin/import

Installation[edit]

Raspberry[edit]

Git installation
Maven installation
Java installation
Login via gh auth login
Clone repositories

uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace $ git clone https://github.com/UweHeuer/uweheuer-backend.git
uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace $ gh repo clone UweHeuer/uweheuer-frontend
uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace $ git clone https://github.com/UweHeuer/hostinterface.git

Build[edit]

build by Maven
setup on computer see here
steering of target environments by profiles in pom.xml:
- local_dev (default)
- heroku

Development Laptop[edit]

jar-file

C:\Uwes\SoftwareProjects\eclipse-workspace\uweheuer-backend>mvn -DskipTests package

Raspberry[edit]

get updates from repository

uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace/uweheuer-backend $ git pull

jar-file

uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace/uweheuer-backend $ mvn -DskipTests package
uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace/hostinterface $ mvn -DskipTests package

Docker[edit]

build image on all computers

<PROJECT_PATH> docker build --tag uweheuerbackend .

Test[edit]

Local from Command Line[edit]

C:\Uwes\SoftwareProjects\eclipse-workspace\uweheuer-backend>mvn test

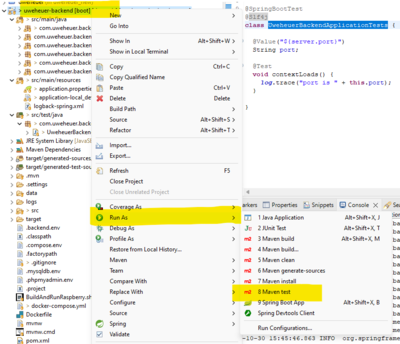

Local from Eclipse[edit]

Run[edit]

Local from Command Line[edit]

Uses the local environment variables (see here)

run MySQL
start backend from command line

C:\Uwes\SoftwareProjects\eclipse-workspace\uweheuer-backend>mvn spring-boot:run

Additional settings could be set via adding -Dspring-boot.run.arguments="--spring.datasource.password=xyz"

Local from Eclipse[edit]

run MySQL

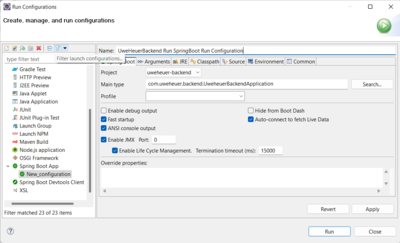

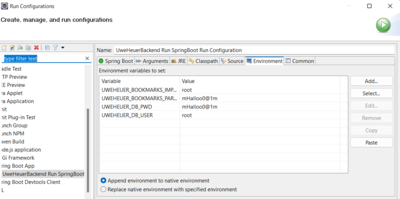

use Eclipse Run Configuration (picture outdated)
1. this creates a file UweHeuerBackend Run SpringBoot Run Configuration.launch in C:\Uwes\SoftwareProjects\eclipse-workspace\.metadata\.plugins\org.eclipse.debug.core\.launches\
  1. if eclipse error occurs and run configuration is empty see here. Add the two missing lines with value of project name 'uweheuer-backend'.

Raspberry Hostinterface[edit]

export UWEHEUER_HOSTINTERFACE_UPDATESOFTWARE_SCRIPT=/home/uwe/SoftwareProjects/eclipse-workspace/uweheuer-backend/BuildAndRunRaspberry.sh
nohup mvn spring-boot:run & // check by ps -e

Docker Compose[edit]

configuration see docker-compose.yml and .compose.env

Local Windows Laptop[edit]

start Docker Desktop
run all containers

C:\Uwes\SoftwareProjects\eclipse-workspace\uweheuer-backend>docker compose --env-file .compose.env up -d

log files go to

CONTAINER_LOGS_FOLDER=C:/Uwes/ContainerLogs/uweheuerbackend (see .compose.env)

database goes to

MYSQL_DB_FOLDER=C:/Uwes/MySQLContainerData/uweheuerbackend  (see .compose.env)

Raspberry[edit]

uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace/uweheuer-backend $ docker compose --env-file .compose.env up -d // using an local env file, run in background

stop all containers

uwe@raspberrypi4:~/SoftwareProjects/eclipse-workspace/uweheuer-backend $ docker compose --env-file .compose.env down

Implementation[edit]

Spring Boot Standard Diagnosis Actuator[edit]

adding Spring Boot Actuator by adding to pom.xml:

<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

adding to application.properties all endpoints

management.endpoints.web.exposure.include=*

add class ActuatorHttpExchangesConfiguration for HTTP request logging

Calling Host from Backend Container[edit]

add to pom.xml

<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-webflux</artifactId>
</dependency>

implement using WebClient

Set Build Timestamp[edit]

see pom.xml below spring-boot-maven-plugin and
AdminController.java BuildProperties attribute

Logging[edit]

uses Logback
see /src/main/resource/log-back-spring.xml
- log files go to /logs/ directory, which is in case of Docker mapped Docker Compose Configuration
- pattern
  - %C{0} // print out without package name
  - %M // print out method name
in a Docker environment /logs/ is mapped via .compose.env to a local machine directory
